4600 Horizontal Split-Case Base-Mounted Pumps

Product Image
4600 horizontal split-case base-mounted pump

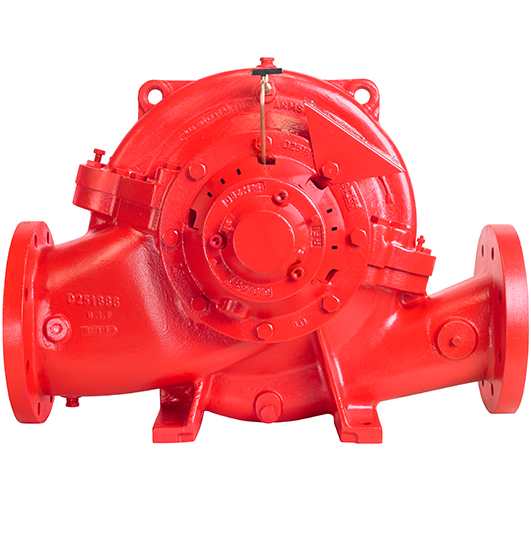

4600 horizontal split-case base-mounted pump Sideview

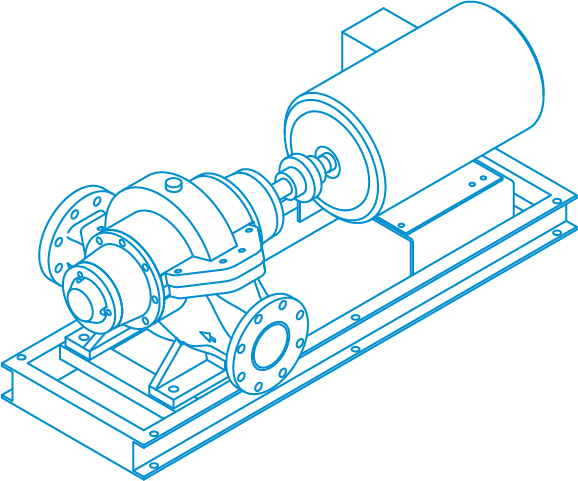

4600 Horizontal Split Case (HSC) Pumps
  • Summary
  • Applications

    HVAC-system pumping; light industrial/ process pumping

  • Description

    The Armstrong 4600 horizontal split-case (HSC) double suction pumps are base mounted and engineered to substantially reduce cost over rival designs across installation, operation, and lifetime maintenance. High-efficiency NEMA-premium motors ensure low energy consumption and cost.

  • Materials
    • Cast iron, ductile iron, or bronze casing
    • Cast iron or bronze impeller
  • Configuration

    Inside single spring mechanical seal

  • Performance Range

    Up to 365 L/s (5,800 USgpm) flow; up to 200 m (650 ft) head

  • Temperature

    107°C (225°F)

  • Power

    (1.1 kW to 400 kW) 1.5 hp to 500 hp

  • Size

    100 mm to 250 mm (4" to 10")

Low installed cost

  •  ANSI/HI 1.3.5 rigid free-standing baseplate eliminates grouting
Design Envelope

Lowest installed cost. Lowest operating cost.

»

Low energy consumption
  • Armstrong 4600 pumps are equipped with high-efficiency NEMA-premium motors for significant reduction in energy consumption and cost
  •  Tilted-parting concept to maximize efficiency and reduce inlet turbulence
  •  All motors are suitable for inverter-fed service

Low maintenance cost
  •  Leaking seals or noisy bearings can be serviced in minutes without disturbing other components
  • No lubrication or seal adjustments required
  •  Integral bearing nut for easy bearing removal and re-use
  •  Mechanical seals and bearings can be replaced easily without opening the pump casing
  •  Unique cartridge design mechanical seal that uses a standard replacement seal
  •  Universal replacement seals, bearings, and motors available locally world-wide

Sustainability

Sustainability

»

Learn More

(PDFs)

360 Service and Support

4600 & 4610 HSC pumps - brochure

E-Coating - white paper

Submittals

(PDF)

BIMs, models & drawings


Typical specs

Warranty

(PDF)

Installation & Operating Instructions

(PDF)

Replacement Parts
