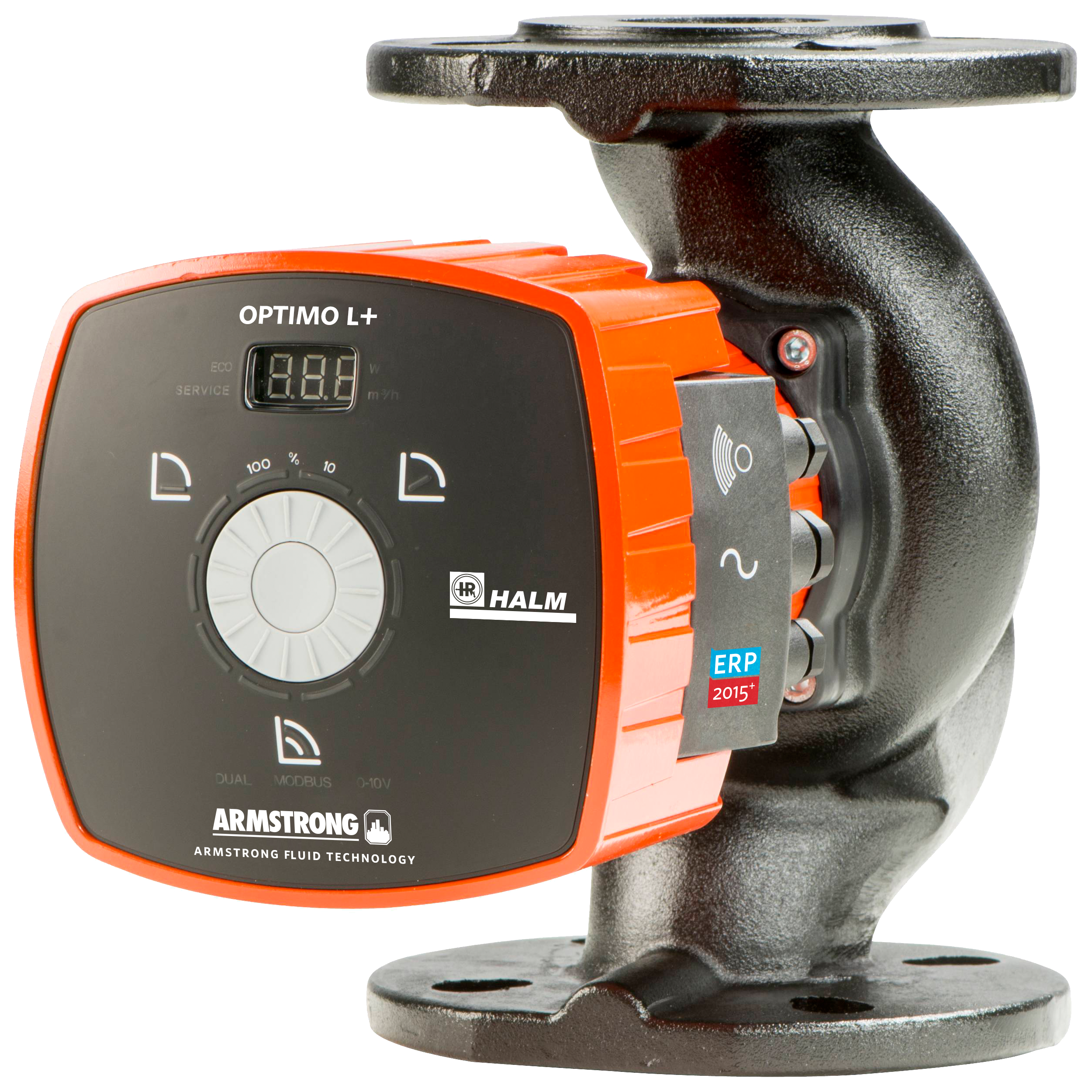

HEP Optimo L + (Not available in the UK)

Product Image

  • Summary
  • Applications

    Residential and commercial heat pump applications

  • Description

    The wet-running high efficiency circulators HEP Optimo L+ have an LCD display, electronically commutated syncronous motor with permanent magnet rotor and a continuously variable differenital pressure control.

  • Materials

    Pump housing - Cast Iron
    Impeller - Plastic with fibreglass
    Shaft - Stainless Steel
    Bearing - Ceramic/Graphite
    Bearing Plate - Stainless Steel
    Can - Stainless Steel
    Insulation Shell - Polypropylene

  • ConfigurationMulti-function control for mode, power, activation
  • Performance Range

    7 to 45m3/h depending on model; 6/8/10 or 12m head

  • Temperature

    Max ambient temp. +40°C; max fluid temp. +110°C

  • Power

    6 -760W depending on model

  • Size
    1 1/2" and 2" threaded connections; DN32, DN40, DN50 and DN65 flanged connections; 180mm to 340mm installation lengths (depending on model)
  • LCD Display
  • Manual start-up feature
  • Smooth running
  • Very low energy consumption
  • Air-vent screw
  • Collective fault signal
  • Convenient operation
  • Axially integrated terminal box
  • Automatic adjustment to pressure conditions
  • Cataphoretic coated pump housing
