- Applications
Residential drinking water applications
- Description

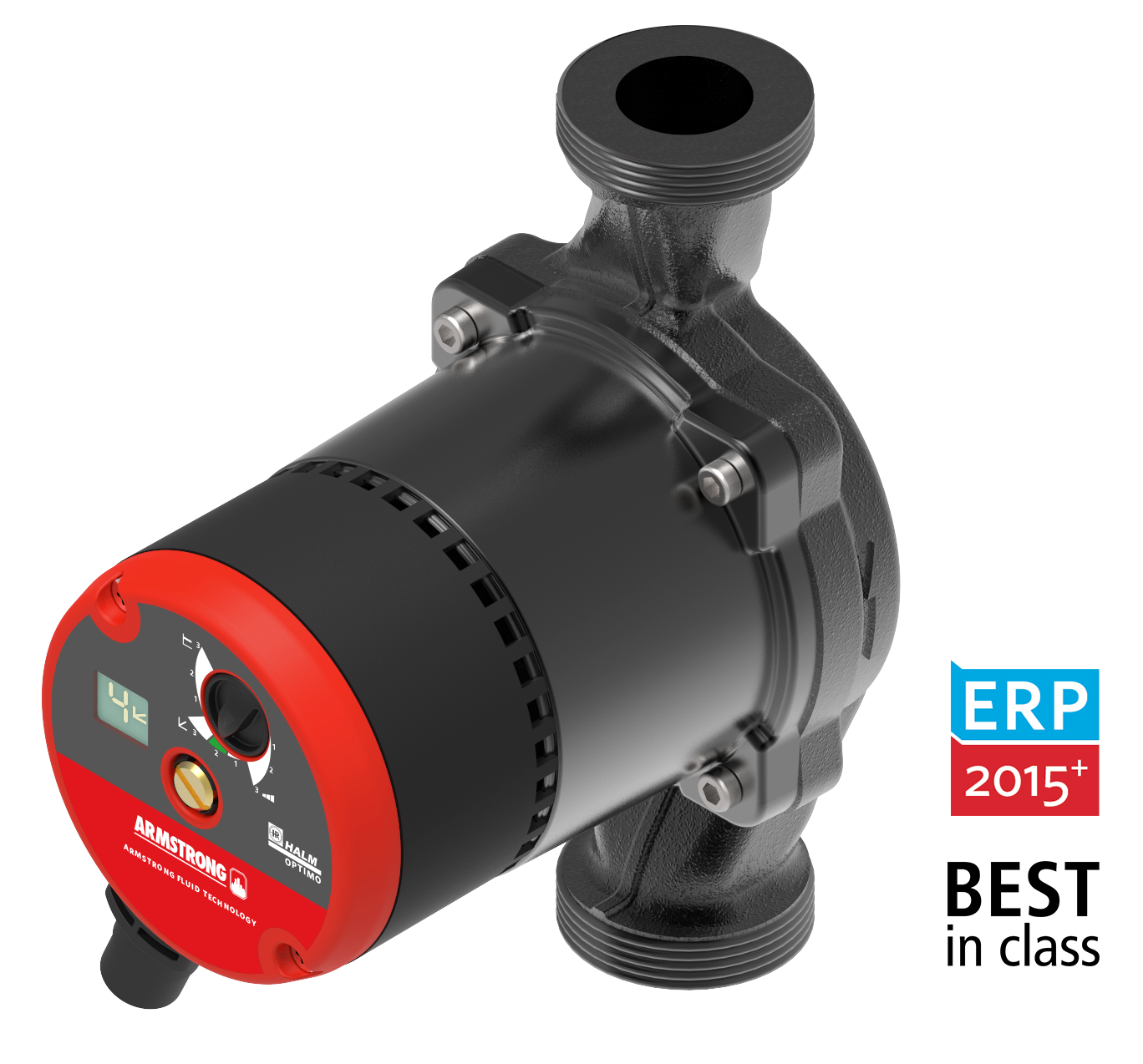

The electronically controlled HEP Optimo (N) high efficiency wet rotor circulator with LED display and permanent magnet technology are designed for use in drinking water systems with variable or constant flow.
- Materials
Pump housing - Stainless Steel
Impeller - Polyamide (PA-GF 35)
Shaft - Ceramic
Bearing - Ceramic
Bearing Plate - Stainless Steel
Can - Stainless Steel
- Configuration
3 control modes: Proportional pressure, fixed speed and constant pressure
- Performance Range
Up to 4.4m3/h; 4/6/8m head
- Temperature
Max ambient temp. +40°C; max fluid temp. +110°C
- Power
4-20W / 5-37 / 6-64W
- Size
1", 1 1/2" and 2" threaded connections; 130mm and 180mm installation lengths
