CCE3 Intelligent Self-Priming Variable Speed Constant Pressure Pump (Only available in Middle East/Africa)

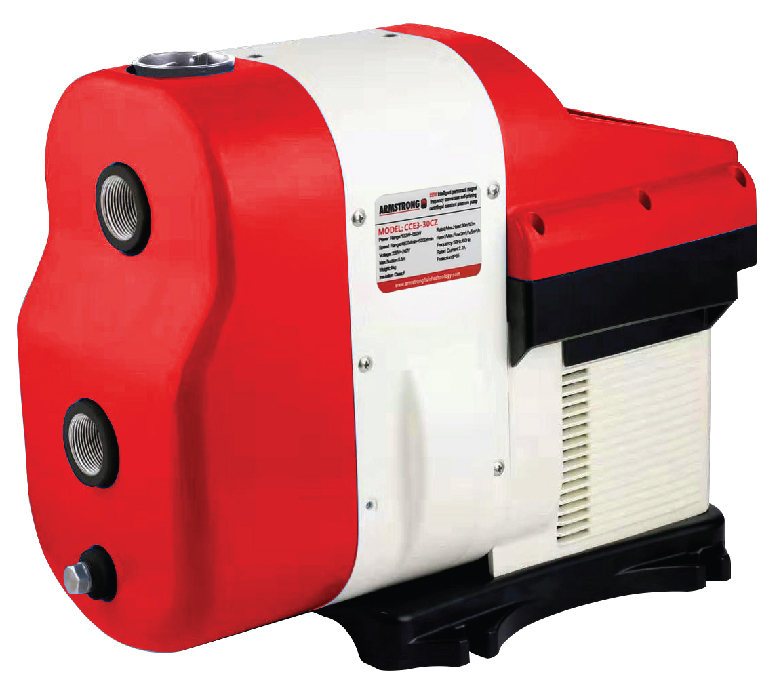

Product Image
  • Summary
  • Applications

    Heating and cooling applications

  • Description

    The CCE3 pump is a high efficiency horizontal centrifugal pump that is equipped with ECM technology (electronically commutated, synchronous motor with permanent magnet motor).

  • Materials

    Stainless Steel threaded connections

  • Performance Range

    Up to 5m3/h (83 l/min) flow; up to 45m (4.5 bar) head

  • Temperature

    Max ambient temp. 55°C; max fluid temp. 70°C

  • Power

    180 - 250v, 50/60 Hz, 1 Phase

  • Size
    Threaded connection G1" x G1"

Find a Rep

Reliability

  • High quality Stainless Steel threaded connections
  • Motor protection with 14 fault alarm alerts and automatic pump shutoff
  • Pressure tank to prevent pump from repeatedly switching on/off in case of leakages that would wear out the pump

Low maintenance cost

  • Maintenance free, 14 fault alarms displayed on integrated control panel

Easy installation

  • 3 Step do it yourself (DIY) installation with self-priming

Energy-saving

  • High efficiency IE4 permanent magnet motor combined with intelligent variable speed control to give IE5 efficiency
