4380 Vertical In-Line Single Pumps

Product Image
4380 vertical in-line pump

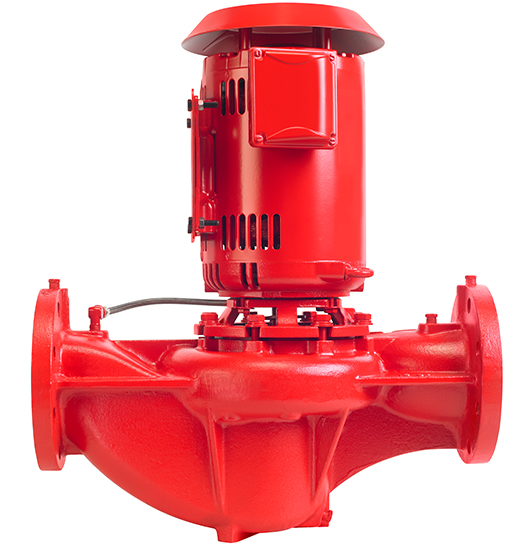

4380 vertical in-line pump Front

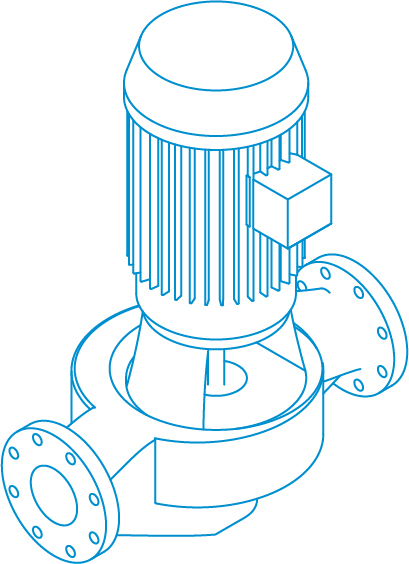

4380 Vertical In-Line (VIL) Single Pumps
  • Summary
  • Applications

    HVAC-system pumping; light industrial/ process pumping (water or glycol based)

  • Description

    The Armstrong 4380 pipe-mounted pumps are designed for space-saving installation and long service life

  • Materials
    • Cast iron, ductile iron, or bronze casing
    • Cast iron or bronze impeller
  • Configuration

    Inside single-spring mechanical seal

  • Performance Range

    Up to 132 L/s (2,100 USgpm) flow; up to 150 m (450 ft) head

  • Temperature

    121°C (250°F)

  • Power

    0.25 kW to 45 kW (0.33 hp to 60 hp)

  • Size

    40 mm to 200 mm (1.5" to 8")

Low installed cost

  •  Vertical In-line design eliminates the need for inertia bases, housekeeping pads, flex connectors, and field alignment or grouting requirements
  •  Vertical In-line design minimizes space and pipe requirements
  •  No lubrication or seal adjustments required

Low energy consumption

  •  Armstrong 4380 pumps are equipped with high-efficiency NEMA-premium motors for significant reduction in energy consumption and cost
  •  All motors are suitable for inverter-fed service
  •  Vertical In-line design minimizes pipe requirements and related friction losses resulting in higher system efficiency

Sustainability

Sustainability

»

Low operating risk

  •  Advanced seal design (sintered silicon carbide) for zero lubrication and seal adjustments
  •  Universal replacement seals, bearings, and motors available locally world-wide
  •  Vertical In-Line design allows for service without disturbing the pump casing
  •  TWIN design for full redundancy in case of emergency or routine servicing
