S&H 3-Piece Circulators

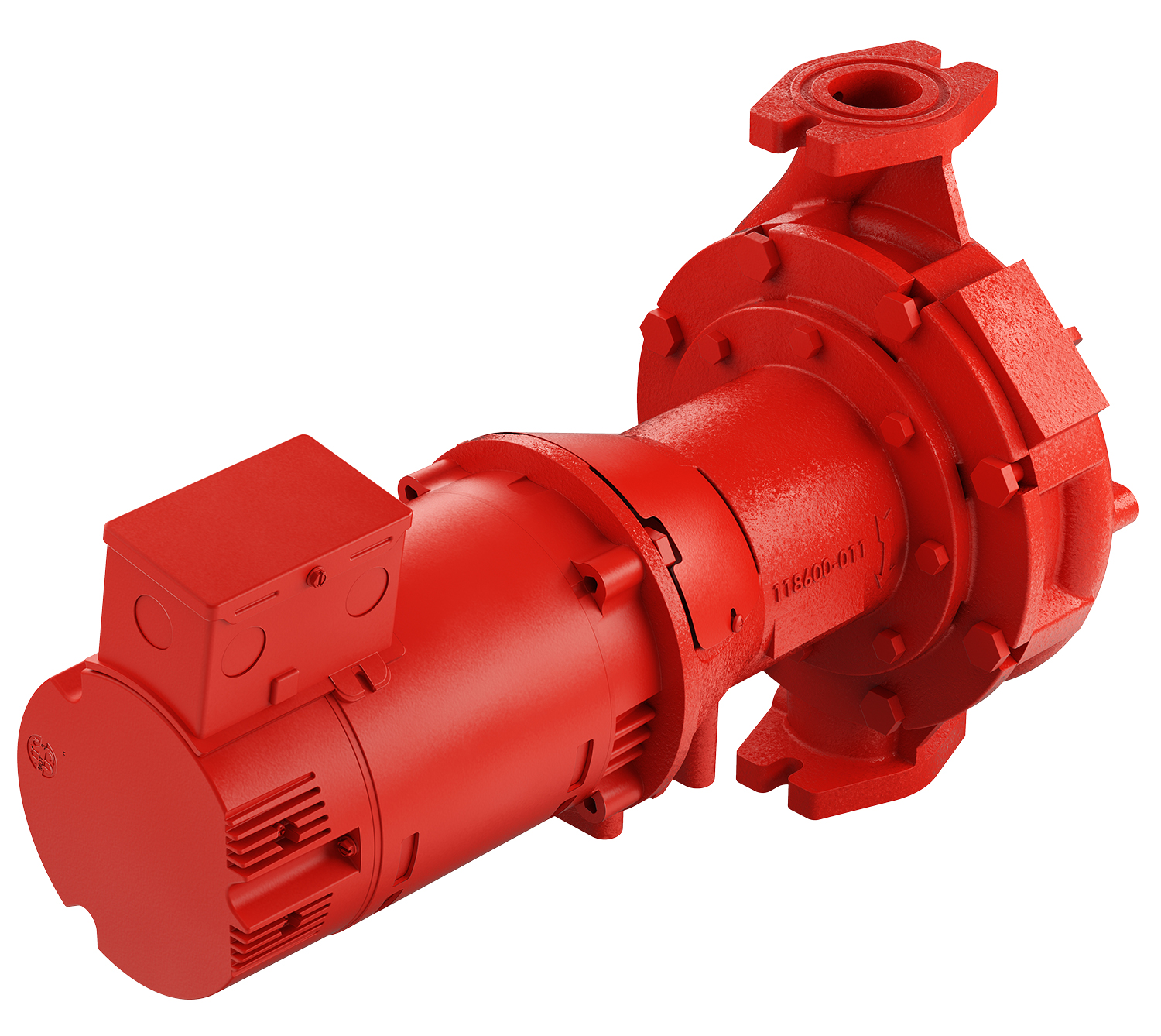

Product Image

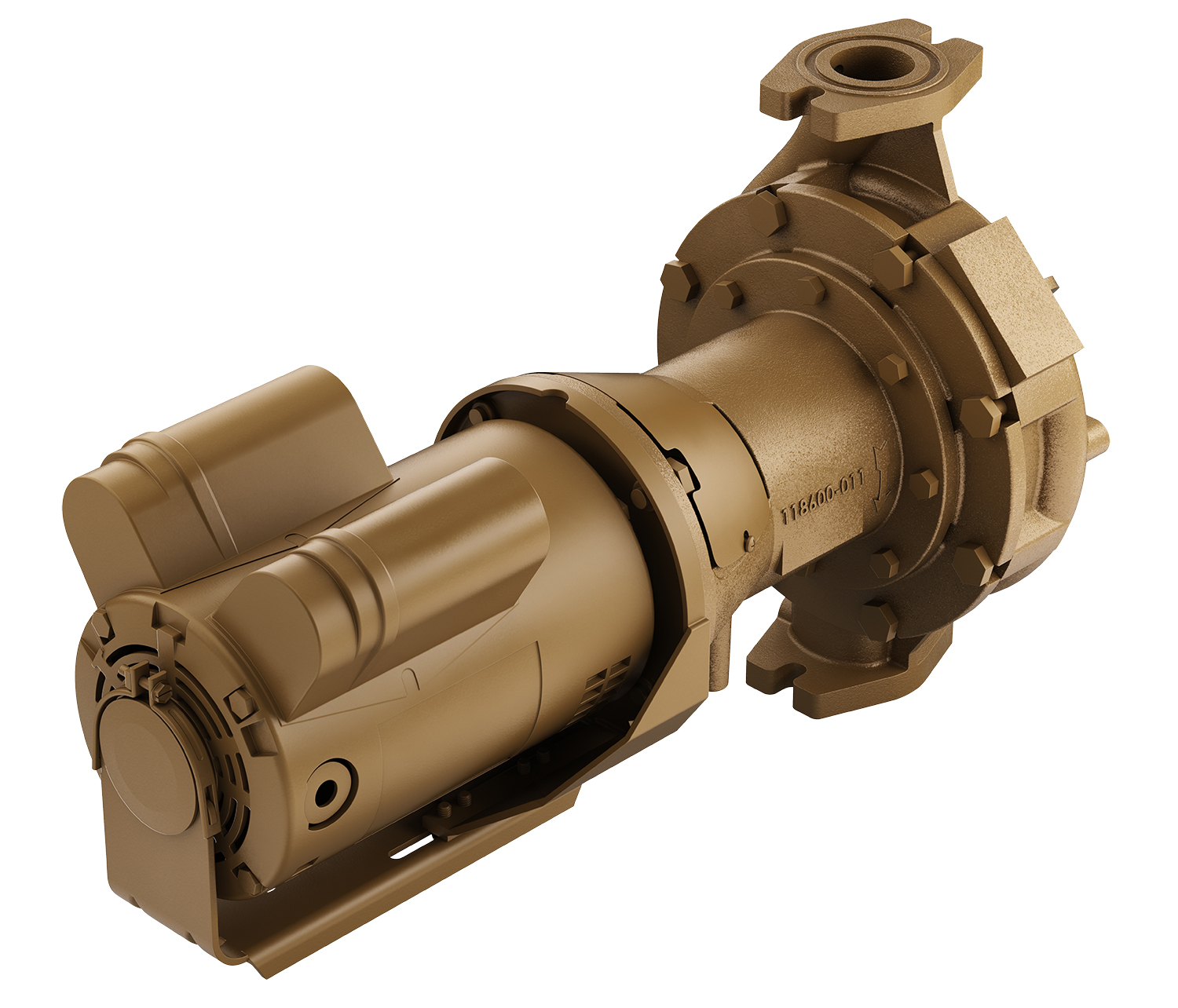

S&H ECM Gold VoluteUp
S&H ECM Right
S&H 3-Piece Circulators
S&H 3-Piece Circulators Sideview
S&H 3-Piece Circulators Line drawing

  • Summary
  • Applications

    HVAC systems, general purpose

  • Description

    The Armstrong S&H circulators now include an ECM motor option and deploy a proven fixed-speed design, which both are cost-effective, durable and easy to maintain. Models are available in the traditional sleeve-bearing design as well as the new, permanently-lubricated, maintenance-free design.

  • Materials

    Cast iron and lead-free bronze volutes

  • Configuration

    50 Hz and 60 Hz designs

  • Performance range

    160 USgpm flow; 57 ft head

  • Temperature

    Max fluid temp 107oC

  • Power Range

    1/12 hp to 1-1/2 hp (.06 kW – 1.12 kW)

  • Size

    3/4” – 3”

Long term trouble-free operation

  • Proven seal design made from strong and long-lasting materials for extended operating life
  • Durable and trusted design
Icon Calculator

ROI Calculator

Calculate the return on investment, when using this product, in just a few quick minutes.
»

Reduced inventory cost

  • Three piece modular construction using a universal replacement shaft & bearing module for efficient parts inventory
  • Durable and fully serviceable design for repeat pump overhauls and repairs
Sustainability

Sustainability

»

Easy and cost-effective servicing

  • Three piece modular construction and back pull-out design for easy replacement of wear components

Learn More

(PDFs)

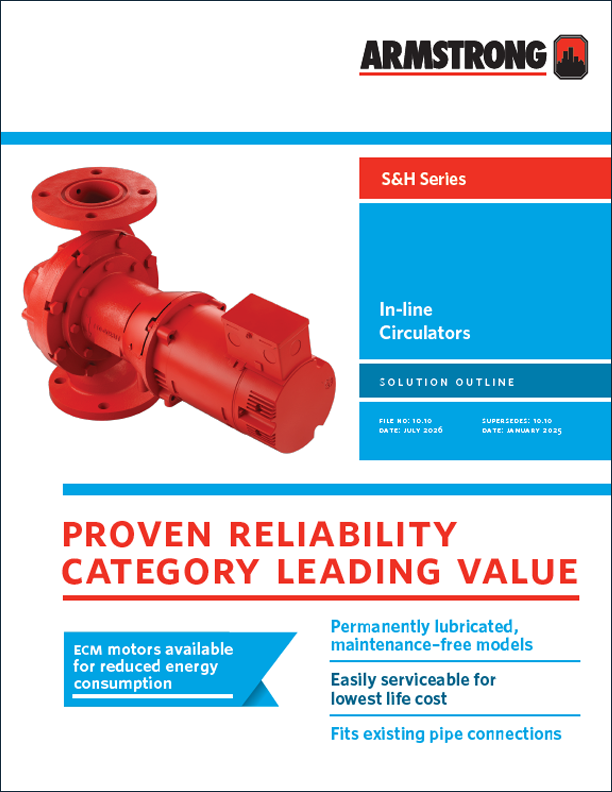

S&H 3-Piece Circulators - Solution Outline

Seal Bearing Assembly - solution outline
