Design Envelope 4280 Close-Coupled Horizontal End Suction Pumps

Print Icon Share Icon
DE Logo

Design Envelope 4280 Close-Coupled Horizontal End Suction Pumps

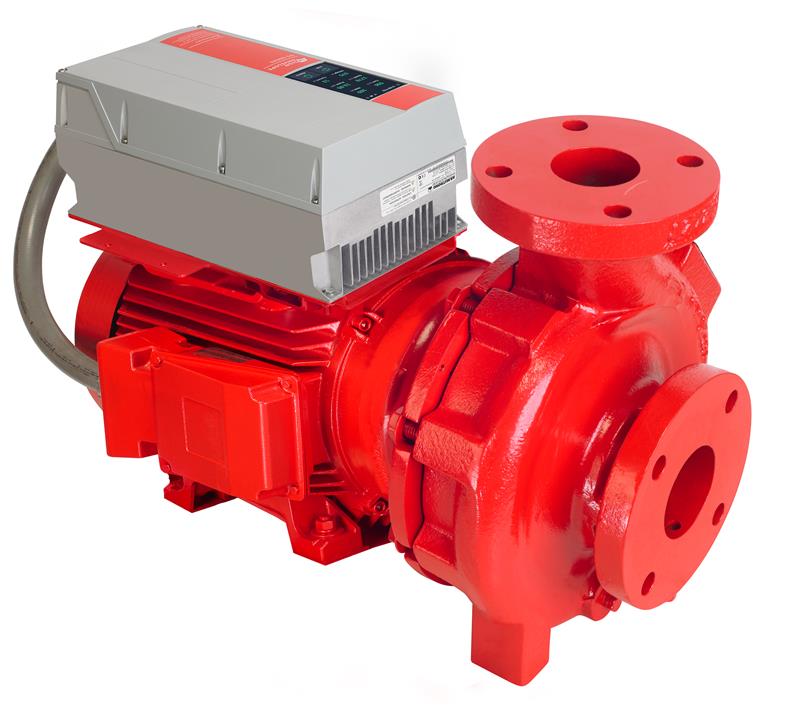

Product Image
Design Envelope 4280 Close-Coupled Horizontal End Suction Pumps - Isometric view
Design Envelope 4280 Close-Coupled Horizontal End Suction Pumps - Line drawing

  • Summary
  • Applications

    HVAC-system pumping; general purpose pumping; industrial/process pumping (water or glycol based)

  • Description

    Motor-mounted pump unit with integrated intelligent controls for space-saving installation and superior energy performance. Saves up to 75% in energy over comparable traditional constant speed or variable frequency operated pump installations

  • Materials
    • Cast iron or ductile iron casing
    • Bronze impeller
    • Sintered silicon carbide mechanical seal
  • Configuration

    On-board Intelligent Variable Speed controls with Sensorless control. Controls enclosure UL type 12 for indoor applications. Supplied with NEMA premium motor for significant reductions in energy usage.

  • Performance range

    Up to 1000 USgpm (63 L/s) flow; up to125 ft (38 m) head

  • Temperature

    250oF (121oC)

  • Power Range

    1 hp to 7.5 hp (0.75 kW to 5.5 kW)

  • Size

    1.5" to 6” (40 mm to 150 mm)

Lowest installed cost

  • Integrated intelligent controls eliminate procurement, installation (incl. wiring), calibration and upkeep of differential pressure sensors
  • Superior energy performance qualifies for significant cost recovery under utility and government rebate programs
  • Design Envelope selections frequently recommend a smaller motor and/or pump which reduces installed cost
Design Envelope

Lowest installed cost. Lowest operating cost.

»

Lowest operating cost

  • Patented selection software ensures Design Envelope pumps are ranked on cost and 3-yrs of operating cost for a 50% average load profile
  • Sensorless Control, available in Design Envelope controllers, operates on the best operating curve for optimum system energy use
Icon Calculator

ROI Calculator

Calculate the return on investment, when using this product, in just a few quick minutes.
»

Lowest environmental cost

  • 75% decrease in energy consumption reduces operational greenhouse gas emissions at equal ratio
  • Equipment downsizing mitigates environmental impacts associated with procuring unnecessarily large equipment
Sustainability

Sustainability

»

Lowest project and operating risk

Learn more

(PDFs)


U.S.A. Utility Energy Rebate Info.

Design Envelope Pumps - solution outline

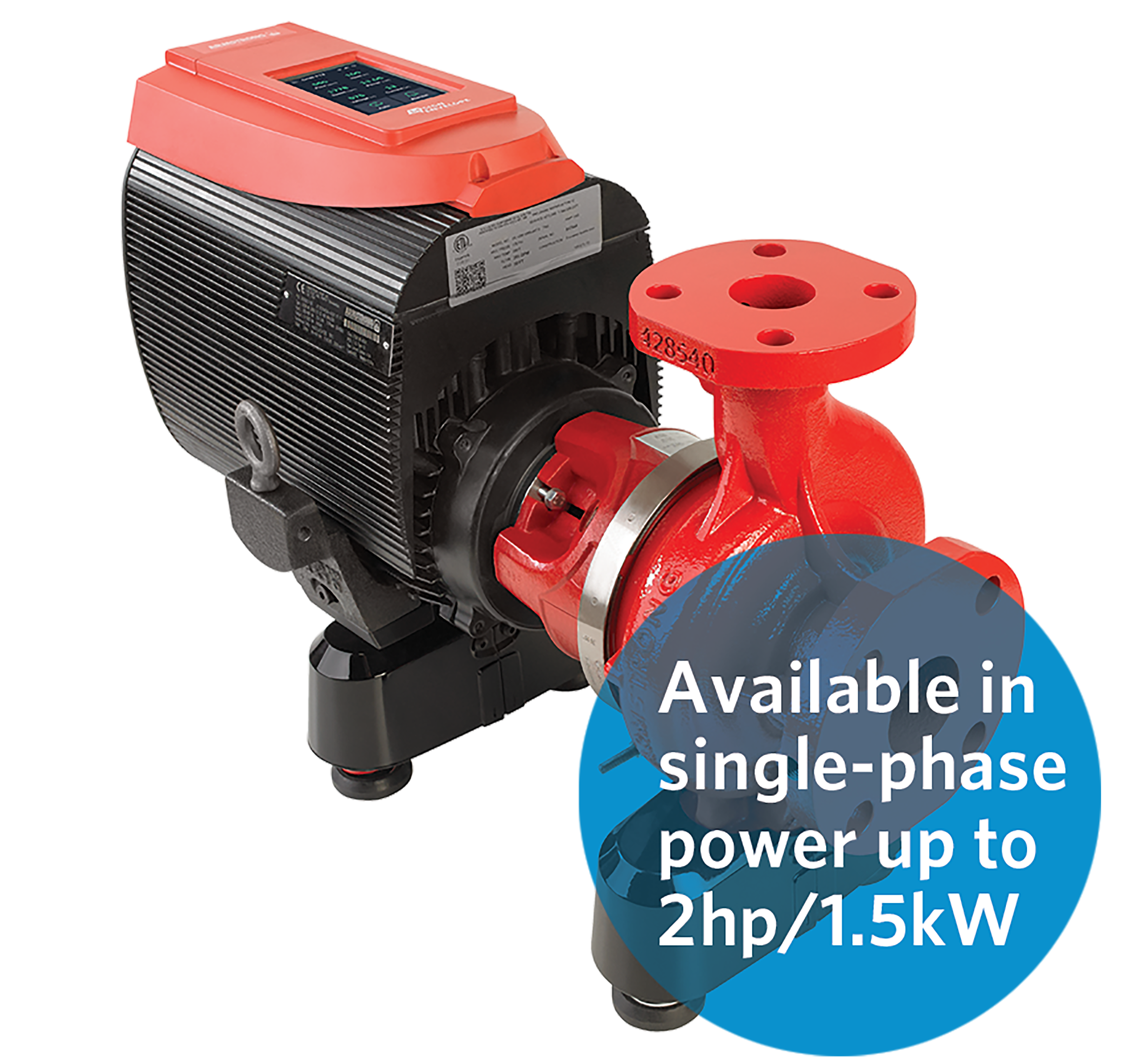

Design Envelope single-phase power supplement

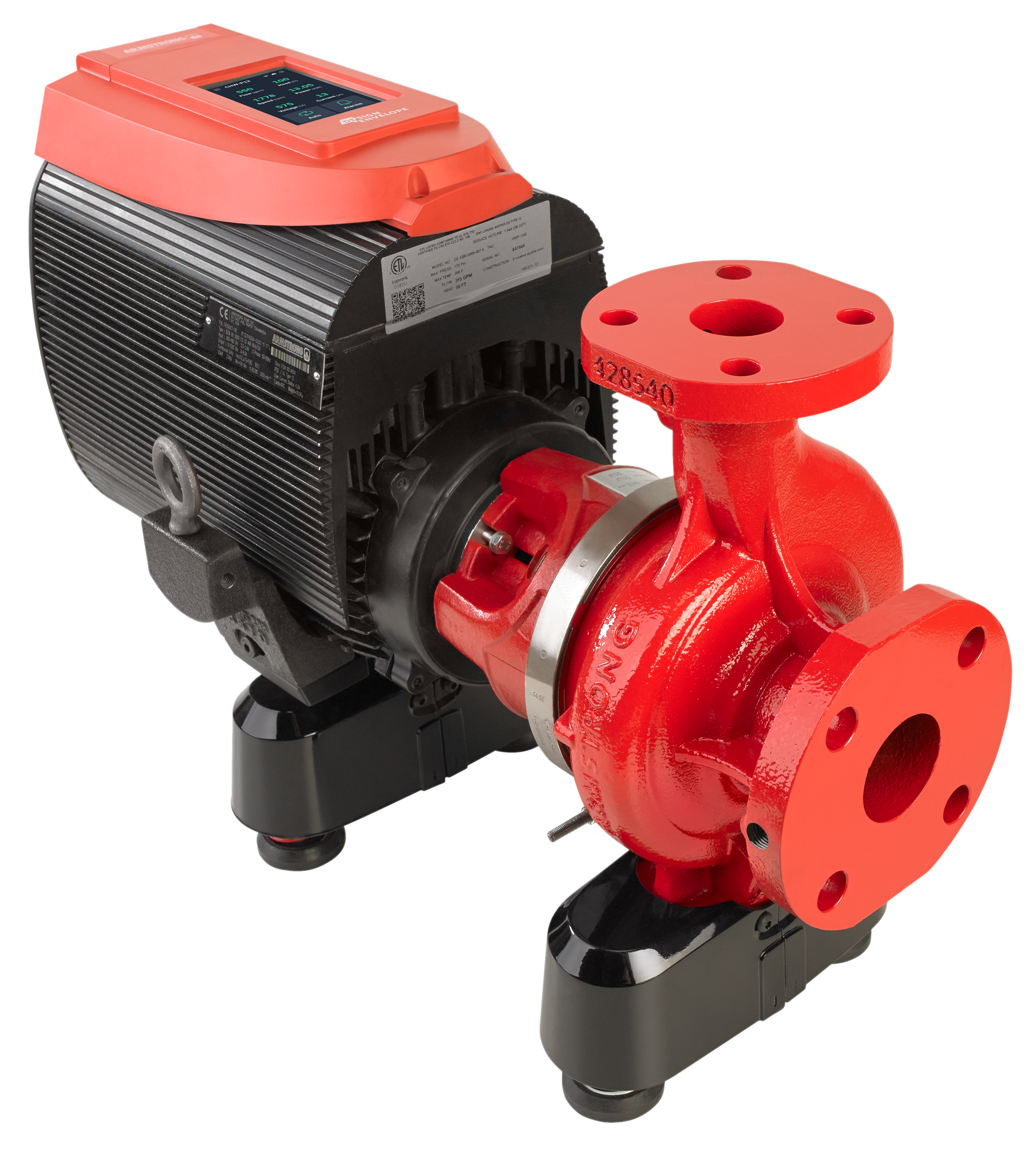

Design Envelope Horizontal Pump supplement
